Guide to Add Custom Modules in ABP.IO App

This guide explains how to create shared and application-layer custom modules in ABP.IO, configure dependencies, and integrate them into your app using CLI and code.

Harsh Gupta

Dec. 08, 25 · Tutorial

Likes (0)

Comment

Save

935 Views

If you want to extend your ABP.IO application with a custom module, like Vineforce.Test—this guide is for you. Whether you’re building a new feature or organizing your code into reusable parts, creating a custom module helps keep your application clean, scalable, and maintainable.

In this guide, we’ll walk through the full integration process step by step, covering both the backend and the Angular frontend. You’ll learn how to properly register the module, configure dependencies, and connect the UI layer to your logic. By the end, you’ll have a working module fully integrated into your ABP.IO solution that follows best practices.

No guesswork, no skipping steps—just a clear path to getting your custom module up and running.

Prerequisites

1. Install ABP CLI

Run the following command:

      HTML

     dotnet tool install -g Volo.Abp.Cli

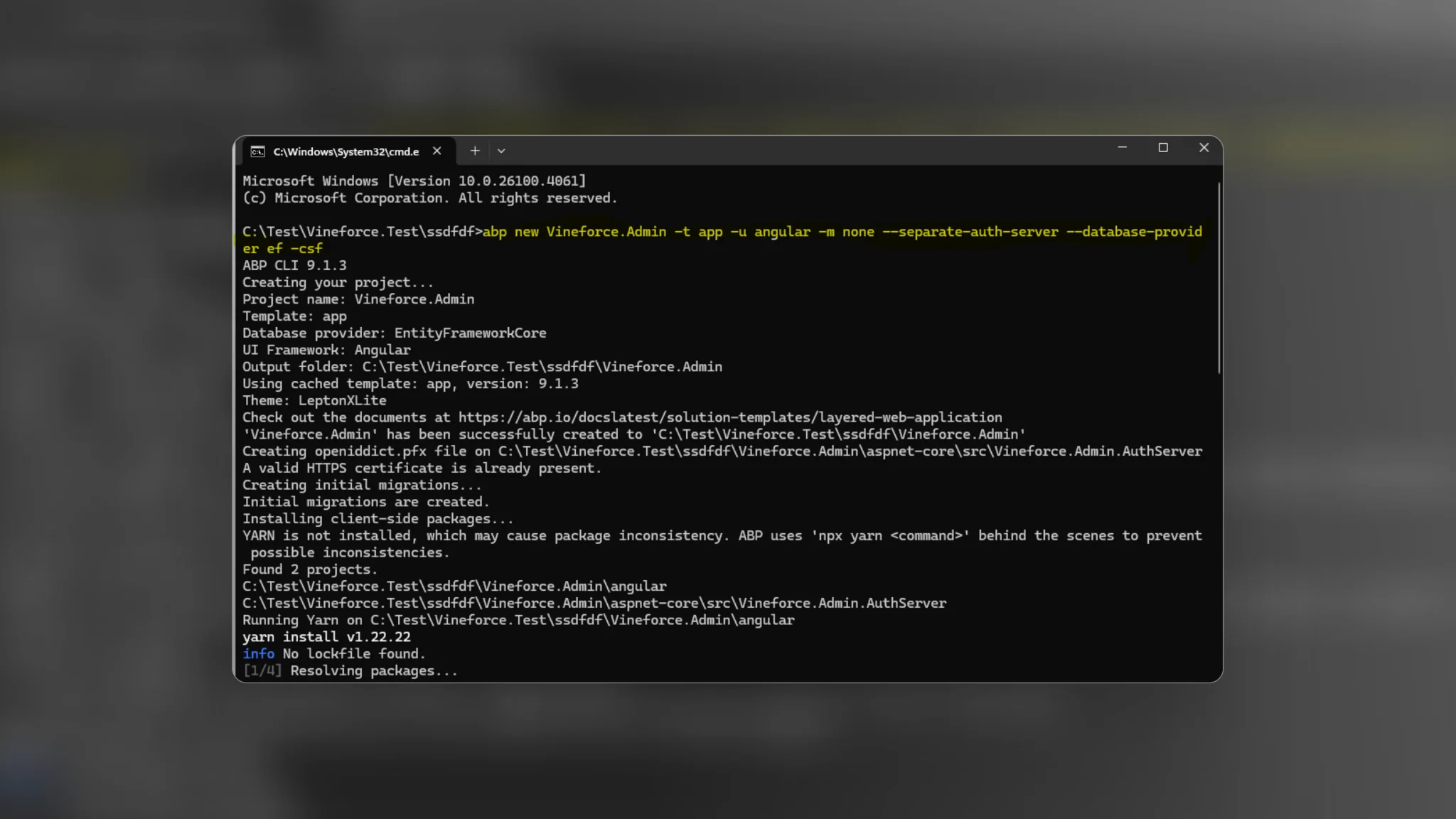

2. Create the main Apb.io application with the name “Vineforce.Admin”

      HTML

     abp new Vineforce.Admin -t app -u angular -m none --separate-auth-server --database-provider ef -csf

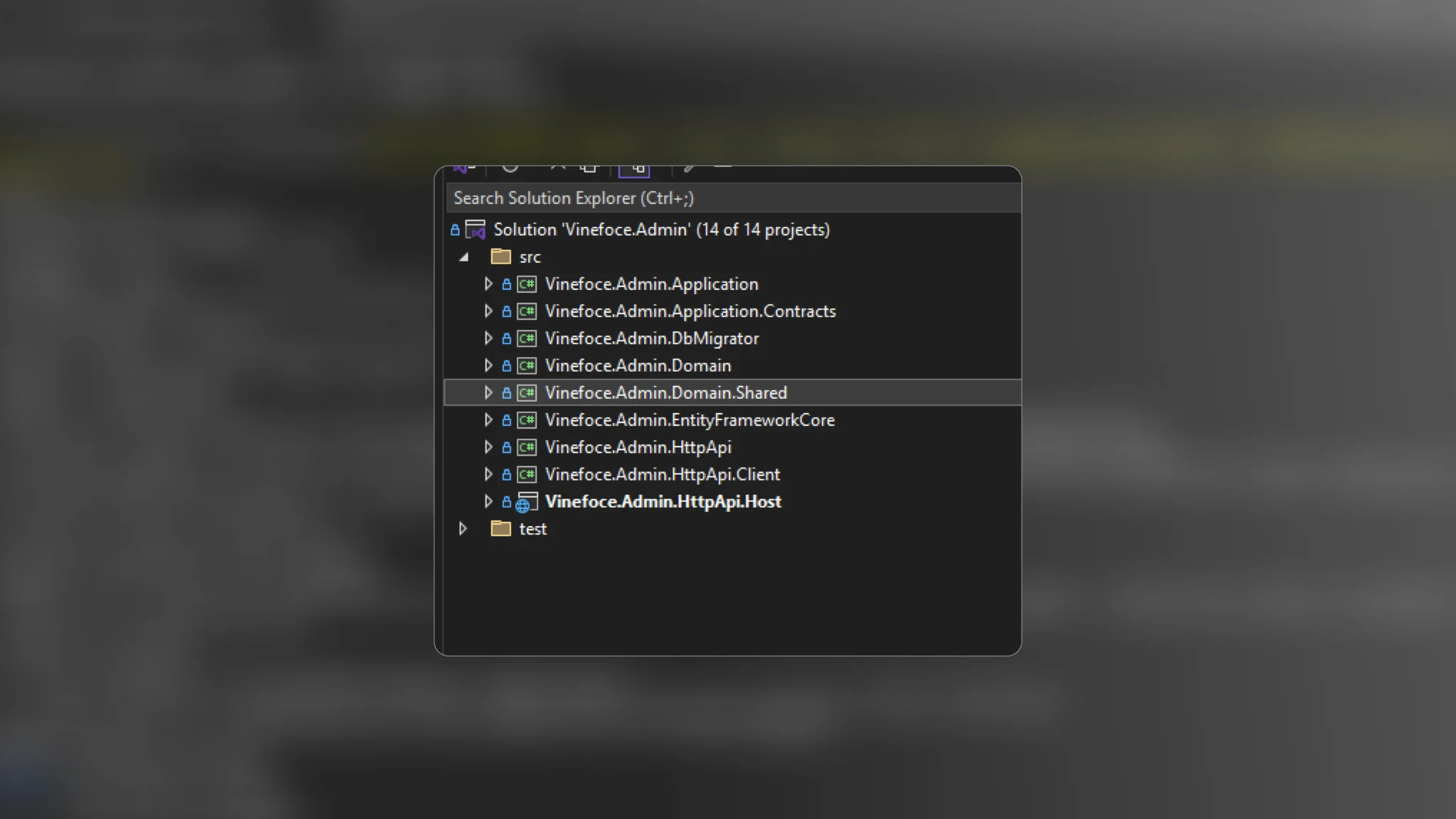

It creates the structure of backend of the main abp application as follows:

3. Configure appsettings.json of the main ABP.IO

Edit the appsettings.json files in the two projects below to include the correct connection strings:

Projects:

Vineforce.Admin.HttpApi.Host
Vineforce.Admin.DbMigrator

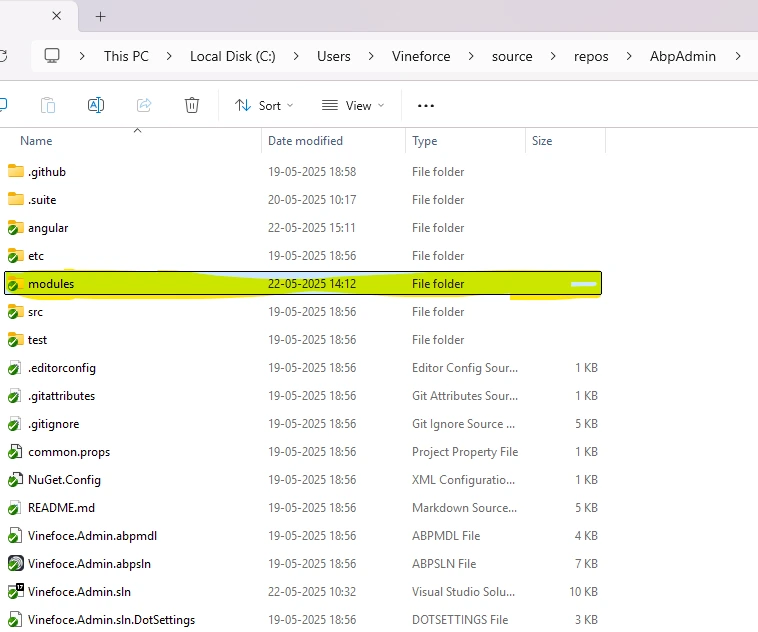

4. Create the Module folder in the main application. Follow the official guide to create your module.

If you choose Angular as the UI framework (by using the -u angular option), the generated solution will include a folder named angular. This folder contains all the client-side code for the application.

Example: A module named Vineforce.Test was created using the Angular UI option.

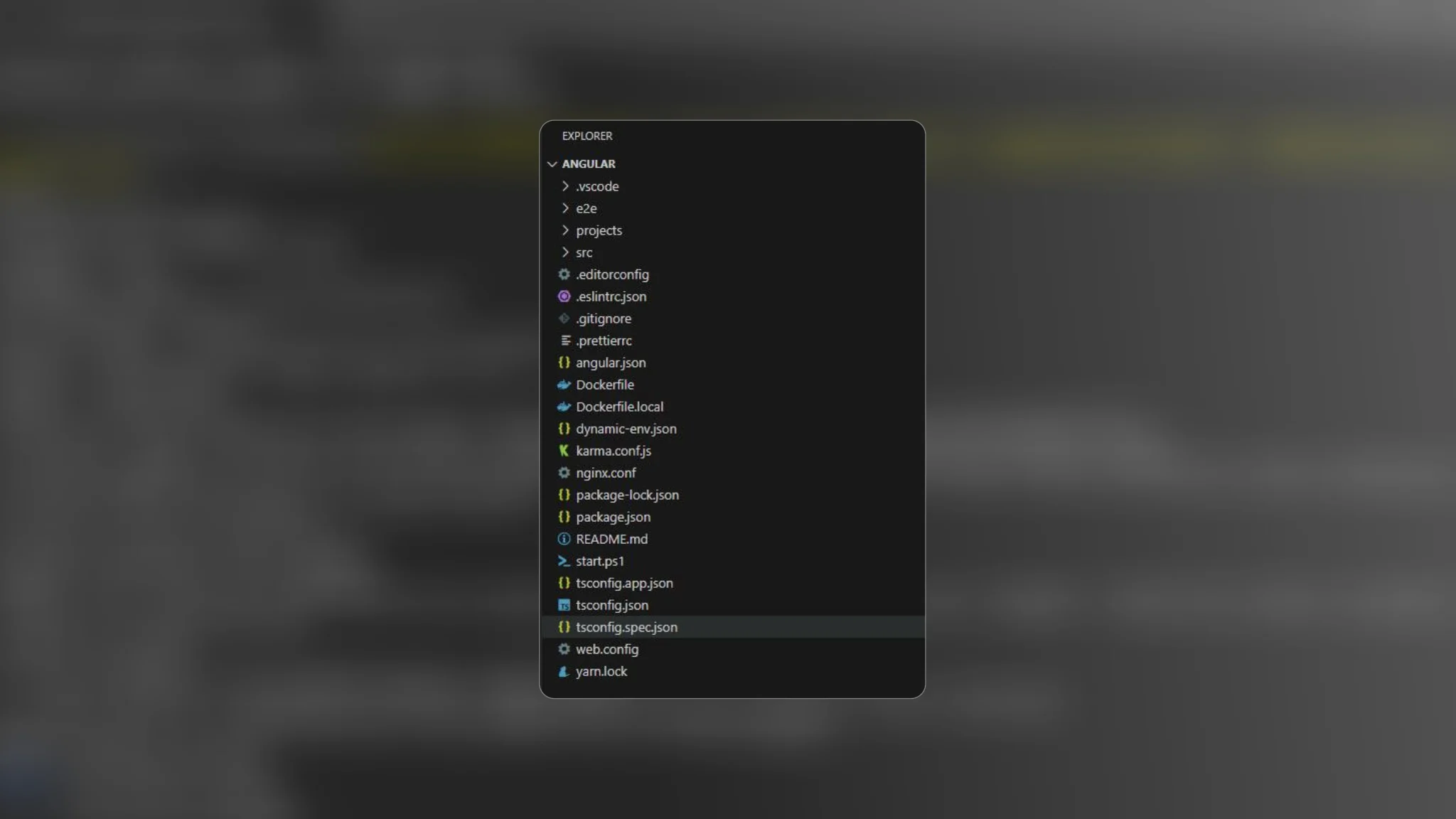

1. When you open the angular folder in an IDE, the folder structure will appear as follows:

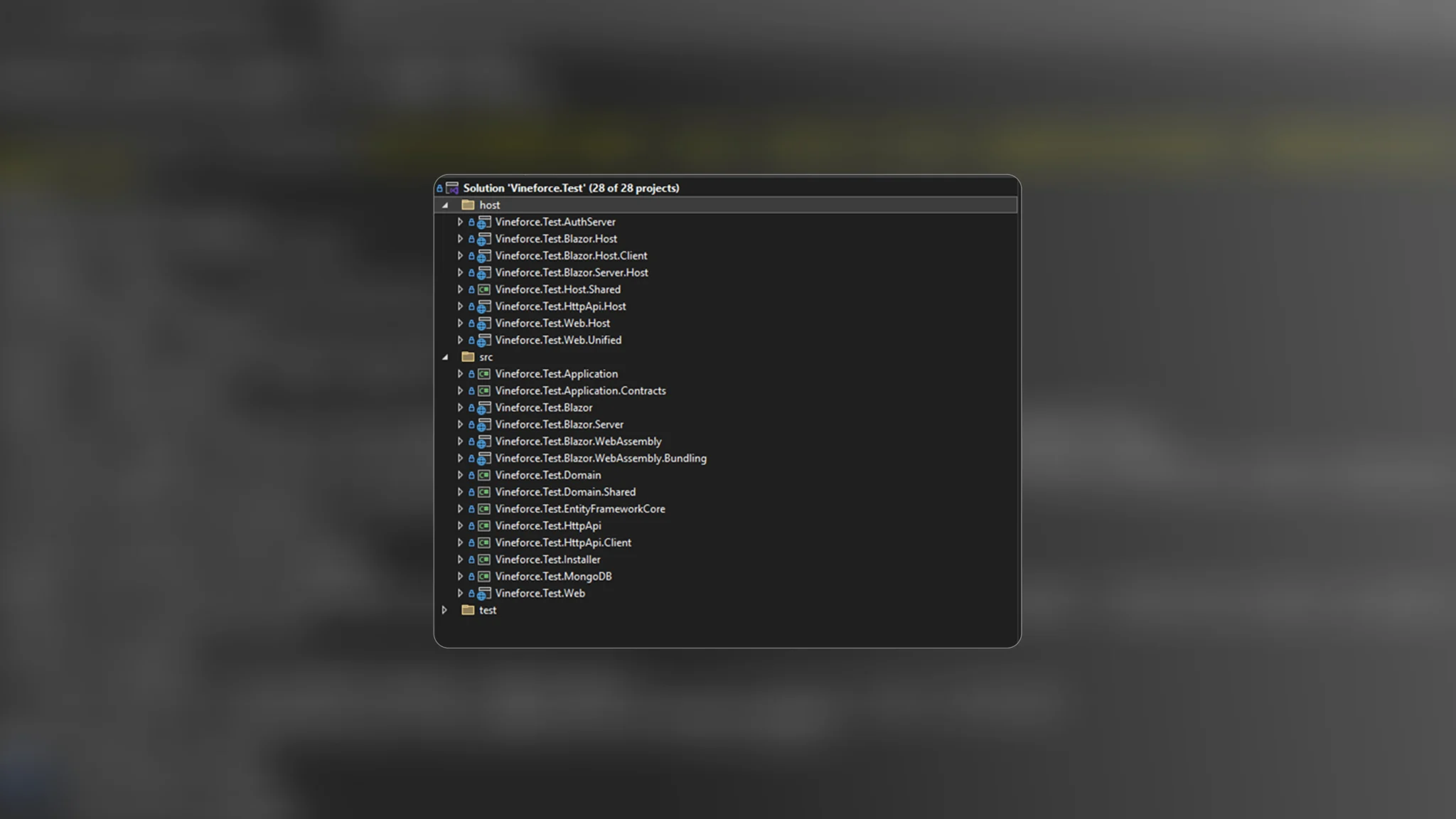

2. And backend structure as follows:

3. Configure `appsettings.json`

Edit appsettings.json in the Host projects to include correct connection strings:

Projects:

Vineforce.Test.AuthServer
Vineforce.Test.HttpApi.Host
Vineforce.Test.Web. Unified

              HTML

             "ConnectionStrings": { "Default": "Server=servername;Database=Test_Main;Trusted_Connection=True;TrustServerCertificate=True", "Test": "Server=VINEFORCE-SHIVA;Database=Test_Module;Trusted_Connection=True;TrustServerCertificate=True" }

Make sure the server names and database details match your development environment.

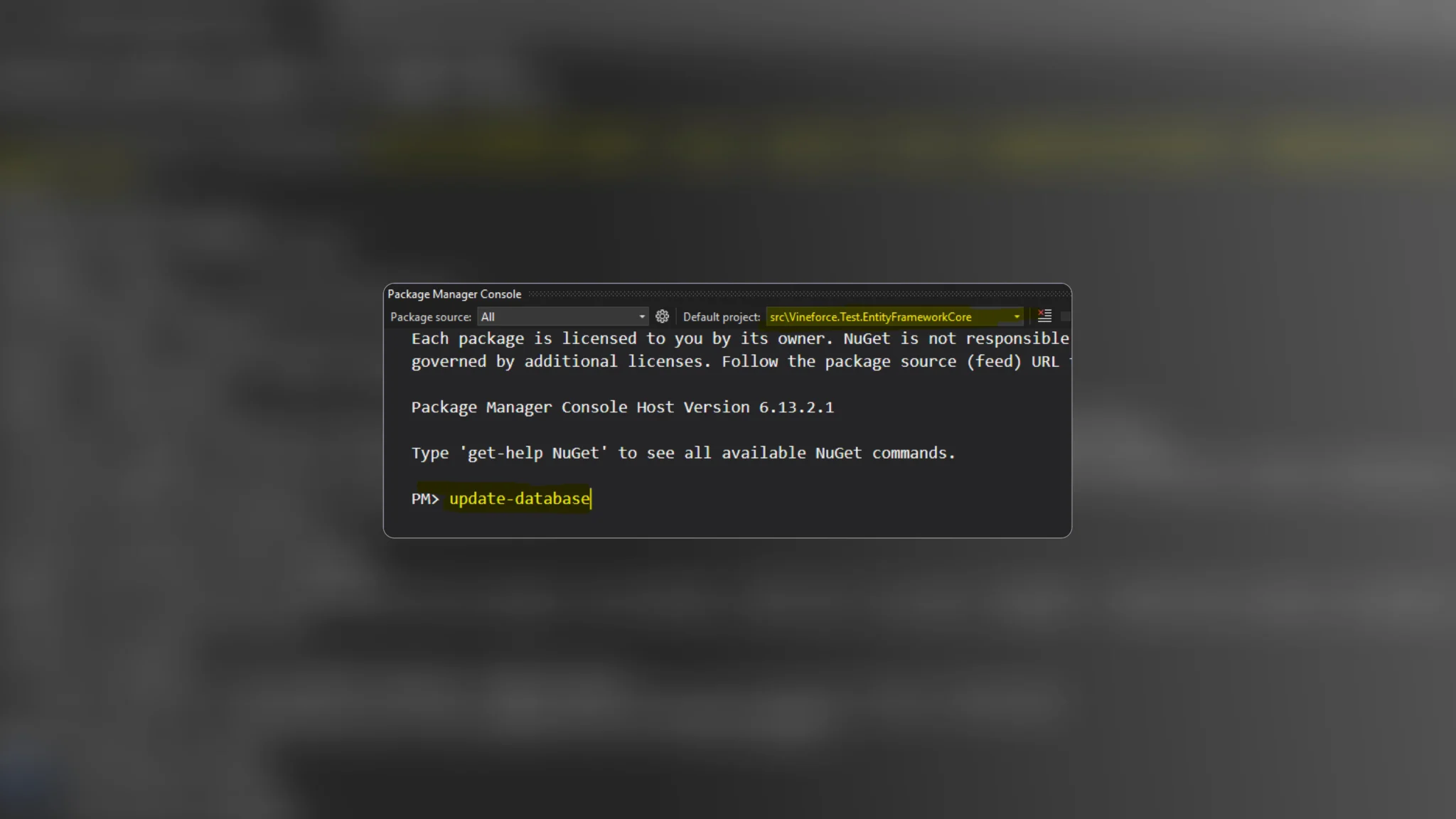

4. Apply Database Update

In the Package Manager Console (under the EntityFrameworkCore project), run:

                HTML

               Update-Database

5. Run the Application

Set Vineforce.Test.Web. Unified as the startup project and launch the application using the default credentials:

Username: admin
Password: 1q2w3E*

6. Ensure Redis Is Running

Redis is used for distributed caching. Make sure Redis is installed and running before starting the application.

Application Startup Order

Run the following projects in order:

                 HTML

                *.AuthServer or *.IdentityServer
*.HttpApi.Host
*.Web.Unified

1. Adding a Module to the Backend of the Main Application

                 HTML

                cd C:\Users\Vineforce\source\repos\AbpAdmin

2. Add All Required Projects of the module to the Main ABP.IO Solution

To include various parts of your module (such as Domain, Application, EntityFrameworkCore, and HttpApi) in the main ABP solution, run the following commands:

                 HTML

                dotnet sln add modules\vineforce.test\src\Vineforce.Test.Domain\Vineforce.Test.Domain.csproj
dotnet sln add modules\vineforce.test\src\Vineforce.Test.Application\Vineforce.Test.Application.csproj
dotnet sln add modules\vineforce.test\src\Vineforce.Test.EntityFrameworkCore\Vineforce.Test.EntityFrameworkCore.csproj
dotnet sln add modules\vineforce.test\src\Vineforce.Test.HttpApi\Vineforce.Test.HttpApi.csproj

Projects are added as below:

Add Project References Using Visual Studio

In the Vineforce.Admin.HttpApi.Host project: Right-click the project and select “Add” → “Project Reference”.

1. In the dialog that appears, check the following projects:

Vineforce.Test.Application
Vineforce.Test.EntityFrameworkCore
Vineforce.Test.HttpApi

2. Click OK to confirm and add the references.

3. After adding the project > reference, here you can add all module references you want.

                   HTML

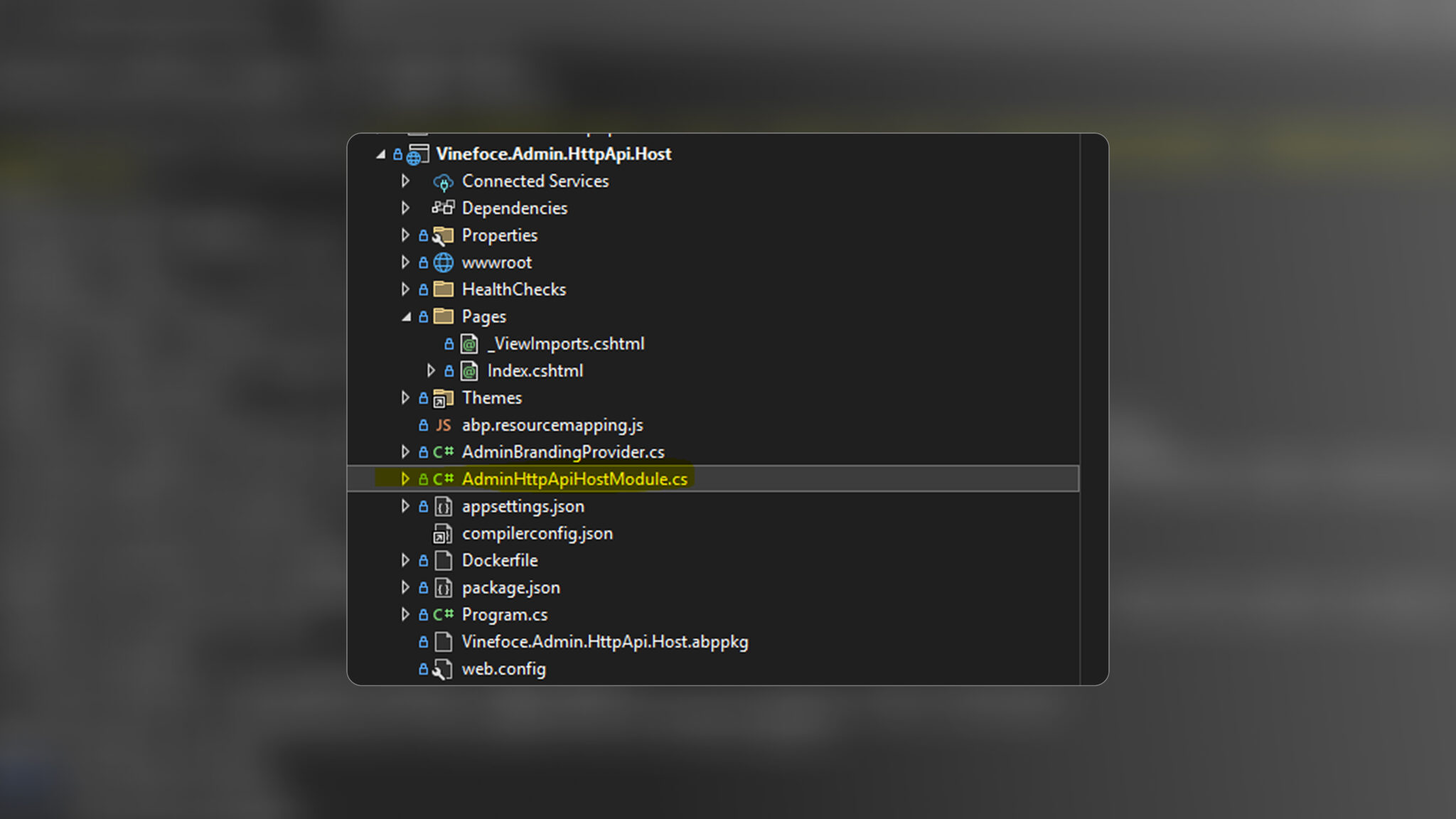

                  In AdminHttpApiHostModule.cs, update the [DependsOn(...)] attribute:.

                   HTML

                  typeof(TestHttpApiModule),
typeof(TestApplicationModule),
typeof(TestEntityFrameworkCoreModule),
typeof(TestDomainSharedModule)

Also, add the necessary using statements:

                     HTML

                    using Vineforce.Test;
using Vineforce.Test.EntityFrameworkCore;

Configure the Module in the EntityFrameworkCore Project

To ensure that schema, table mappings, and other Entity Framework configurations from the module are applied in the main ABP.IO application, follow these steps:

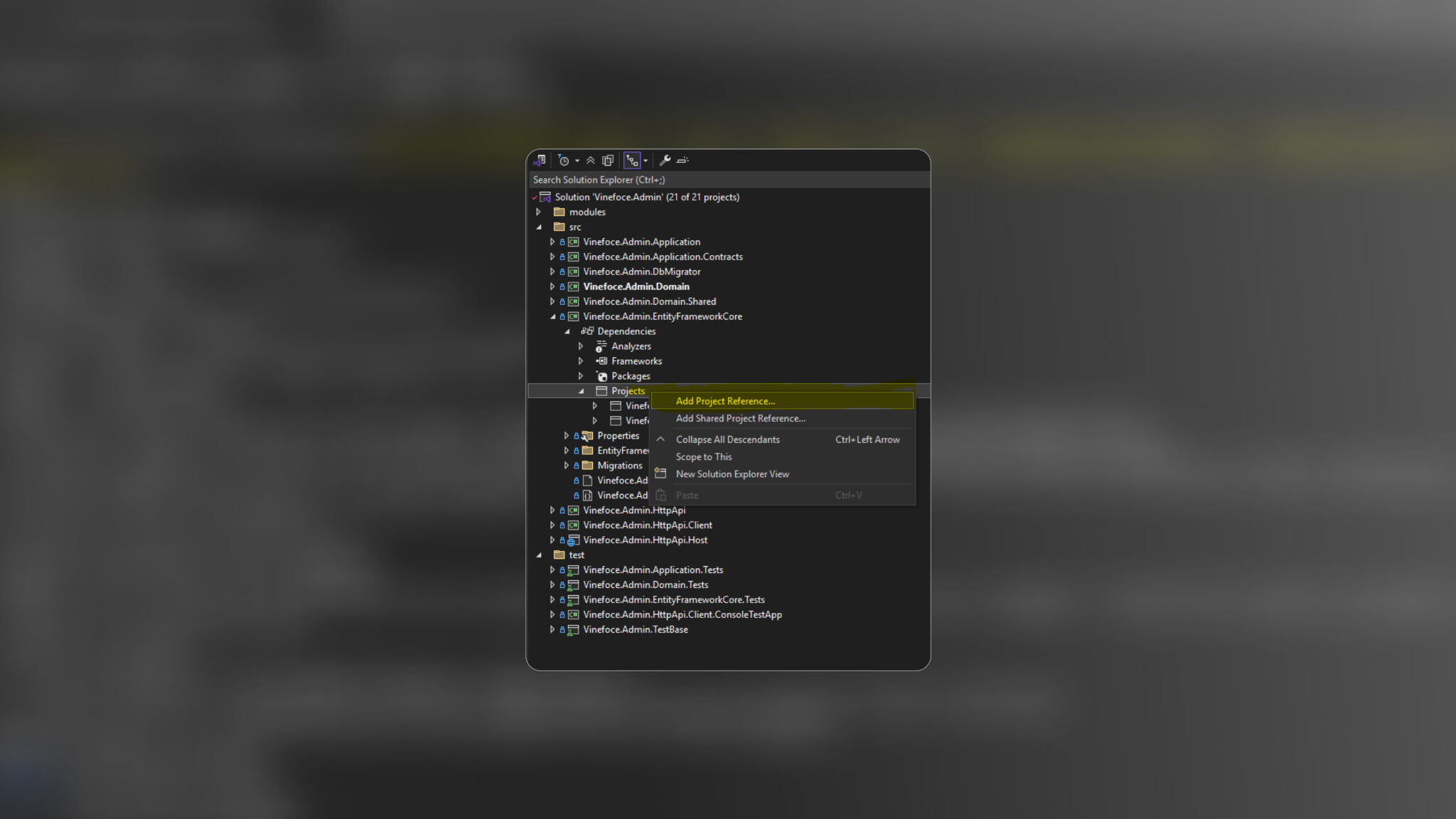

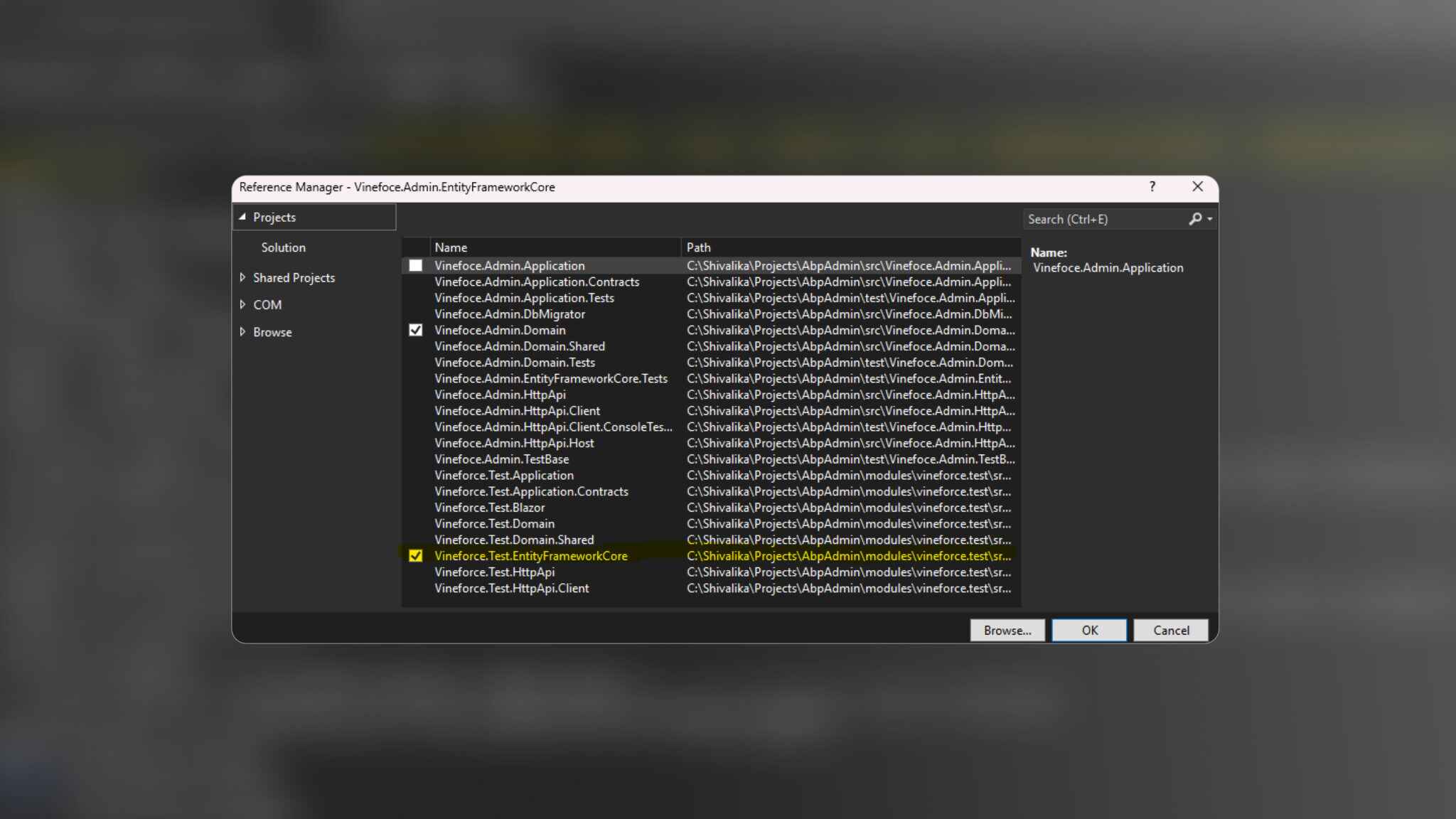

Add a Project Reference:

Right-click on the Vineforce.Admin.EntityFrameworkCore project.
Select Add → Project Reference.
Check and add: Vineforce.Test.EntityFrameworkCore

Update the DbContext Configuration

Open AdminDbContext.cs.
Inside the OnModelCreating method, add the following line to apply the module’s configuration:

                     HTML

                    builder.ConfigureTest();

You can verify this by navigating to the Vineforce.Test.EntityFrameworkCore module and opening the TestDbContext class.

Apply Migrations to Update the Database Schema

After completing the integration steps, you need to apply Entity Framework migrations to reflect the module’s schema changes in the database.

Option 1: Using PowerShell or Terminal

Open a PowerShell or terminal window.
Navigate to the EntityFrameworkCore project directory of your main application, for example:cd src/Vineforce.Admin.EntityFrameworkCore
Run the following command to create a new migration:

                       HTML

                      dotnet ef migrations add Add_Test_Module

Option 2: Using the Package Manager Console in Visual Studio

Open the Package Manager Console (Tools → NuGet Package Manager → Package Manager Console).
Set the Default Project to src\Vineforce.Admin.EntityFrameworkCore.
Run the following command:

                        HTML

                       PM> Add-Migration Add_Test_Module

This will generate a new migration that includes all Entity Framework changes from the integrated module.

Then run the following command to apply the migration and update the database:

                      HTML

                     Update-Database

Steps to add the module application to the main ABP.IO application

Step 1: Build the Angular Module

Navigate to the module’s frontend directory and build the module using the Angular CLI:

                        HTML

                       ng build test --configuration production

This command compiles the test Angular module in production mode and outputs the build artifacts to the dist folder.

Output folder:
C:\Users\Vineforce\source\repos\AbpAdmin\modules\Vineforce.Test\angular\dist

Step 2: Copy Module Output to Main App

Go to your main app’s angular folder: C:\Users\Vineforce\source\repos\AbpAdmin\angular
Create a projects folder inside it.
Copy the test folder from the dist directory into projects.
Final path: C:\Users\Vineforce\source\repos\AbpAdmin\angular\projects\test

Step 3: Update App Routing

Open app-routing.module.ts in the main app:

C:\Users\Vineforce\source\repos\AbpAdmin\angular\src\app\app-routing.module.ts

In app-routing.module.ts, import the module’s routing configuration and add it to the main route definitions:

                      HTML



                     {
  path: 'test',
  loadChildren: () =>
    import('test').then(m => m.TestModule.forLazy())
}


Step 4: Link the Module in `package.json`

Open the package.json file having path C:\Users\Vineforce\source\repos\AbpAdmin\angular add the following line under the “dependencies” section to link your local module:

                       HTML

                      "test": "file:projects/test"

Then install dependencies:

                      HTML

                     npm install

You can now see the Test Module API controller in the Swagger UI of the main application.

You can now log in to the main application

The Test module now appears in the main application. You can add, edit, or delete items according to the assigned permissions.

Country ‘Russia’ has been added. You can view, edit, or delete it on the page

You can grant or revoke permission on the following page

Now Edit permission has been disabled for the current user/page.

Currently, the delete option is visible, but the edit option is not showing on the pagepermission has been disabled for the current user/page.
